Sitasys AG

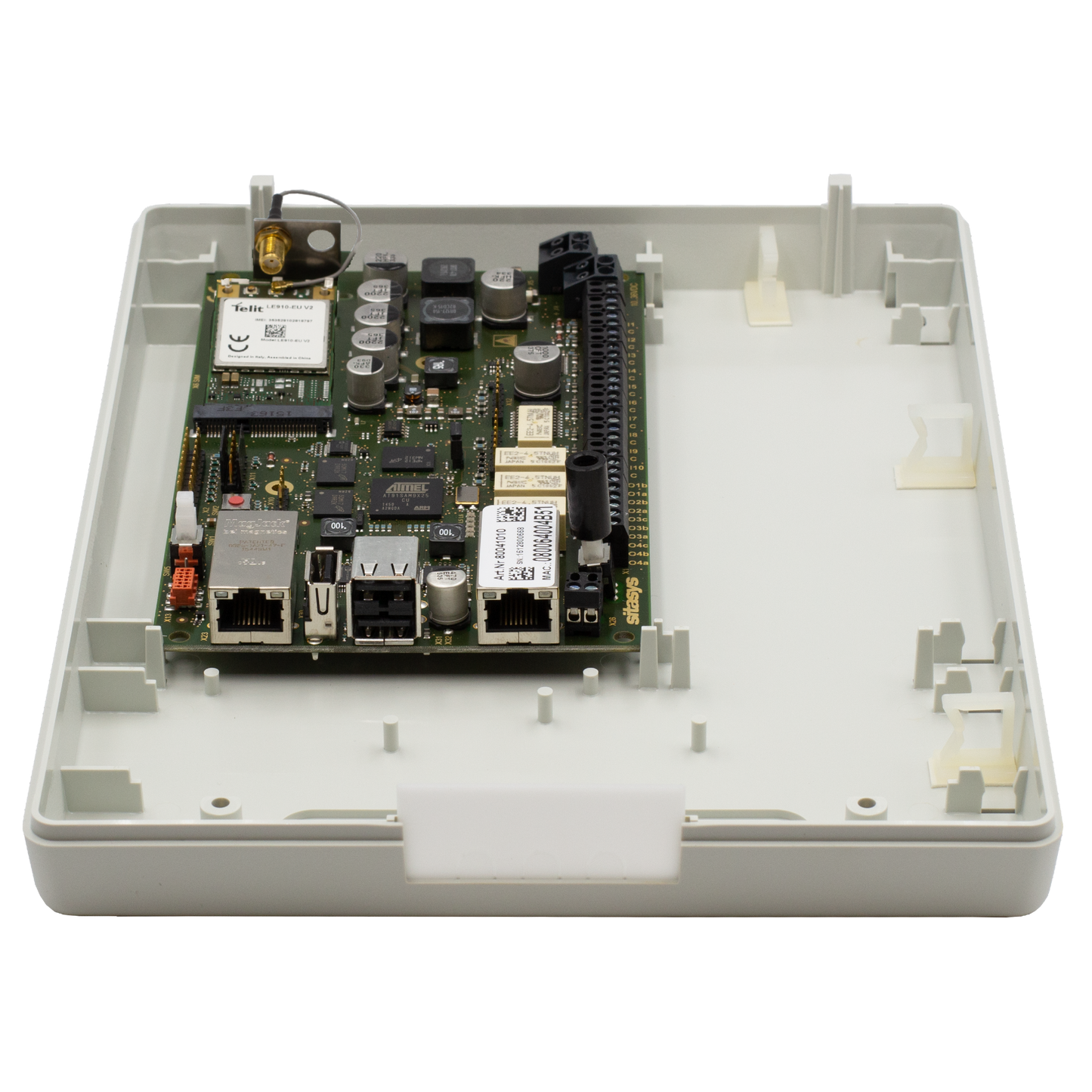

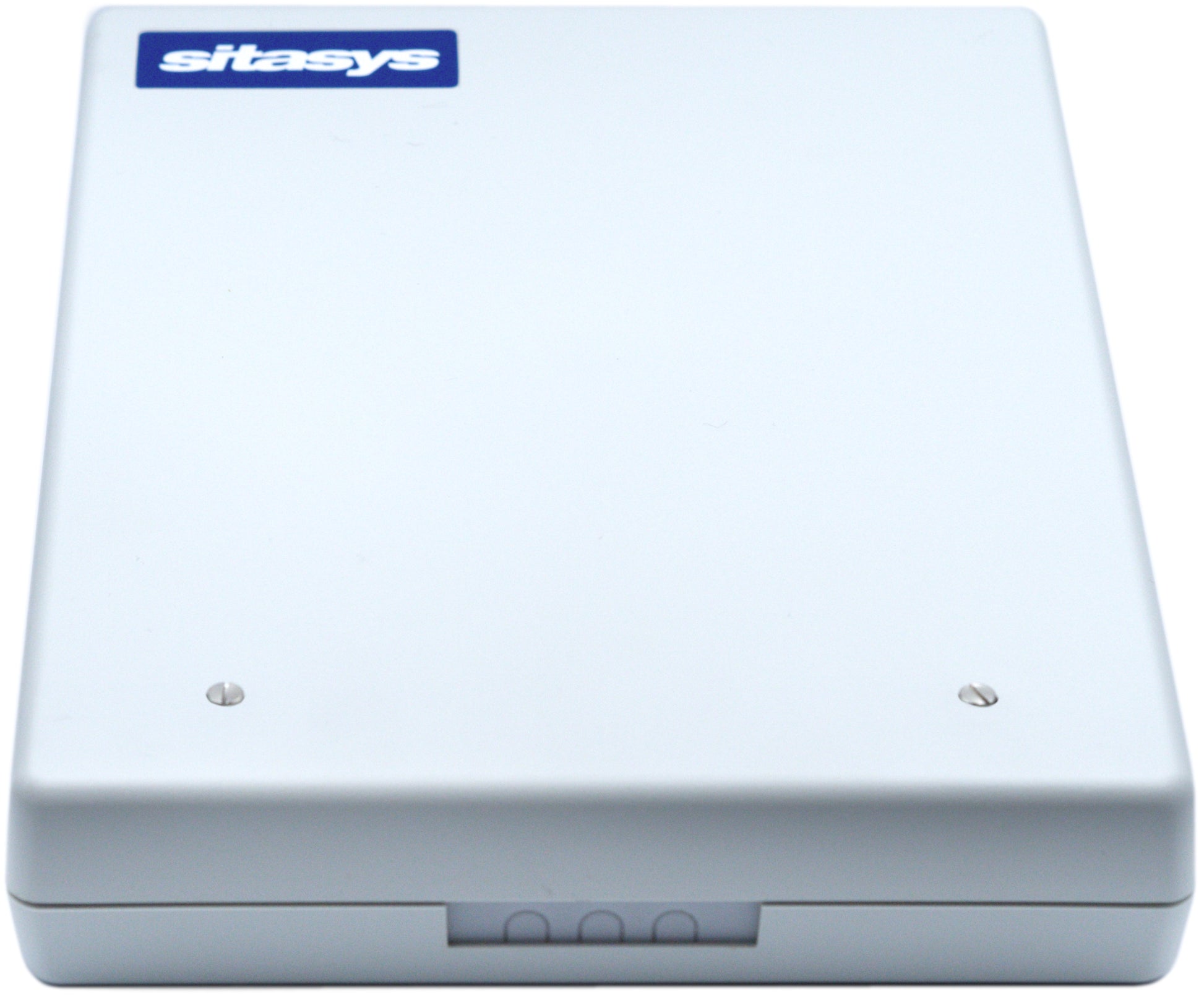

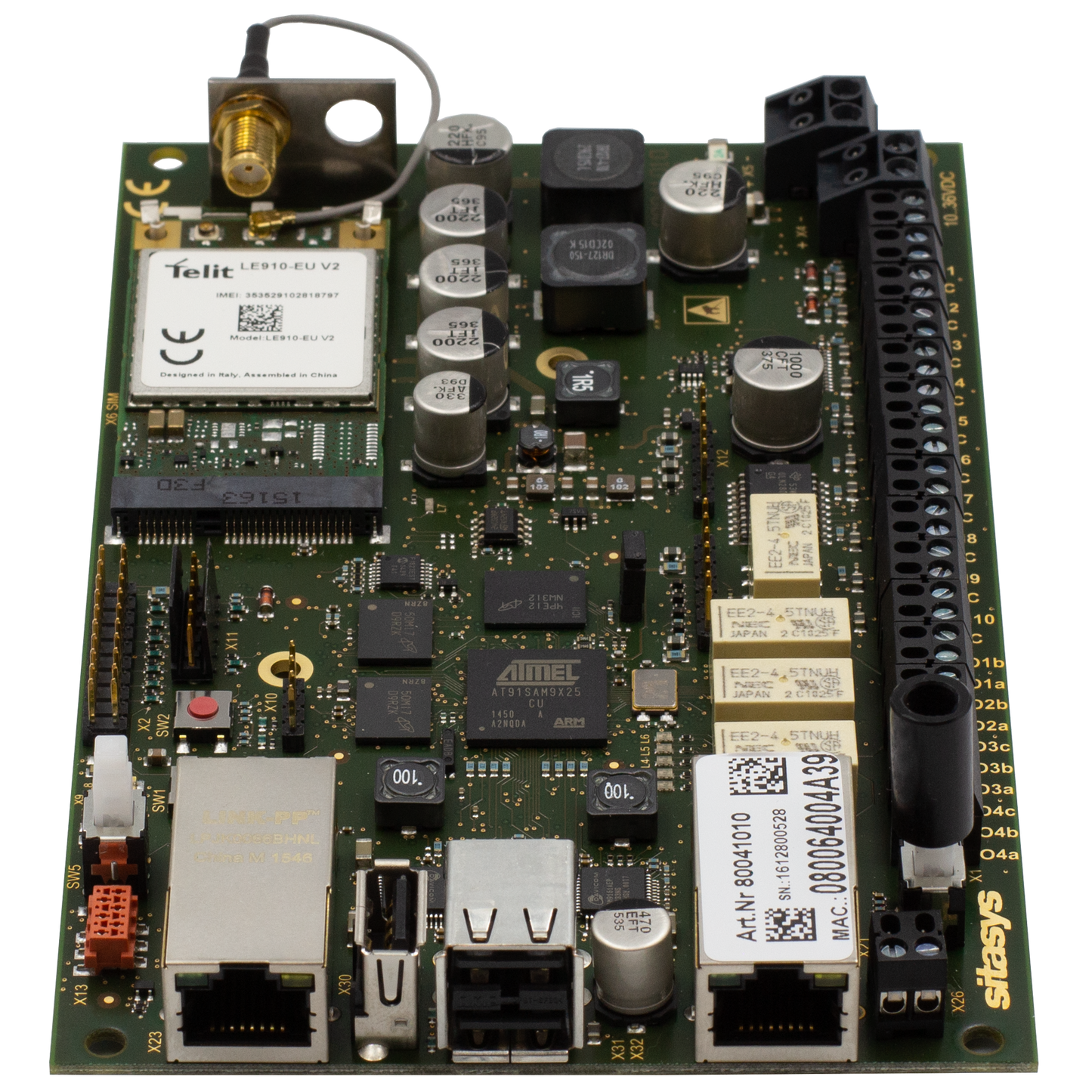

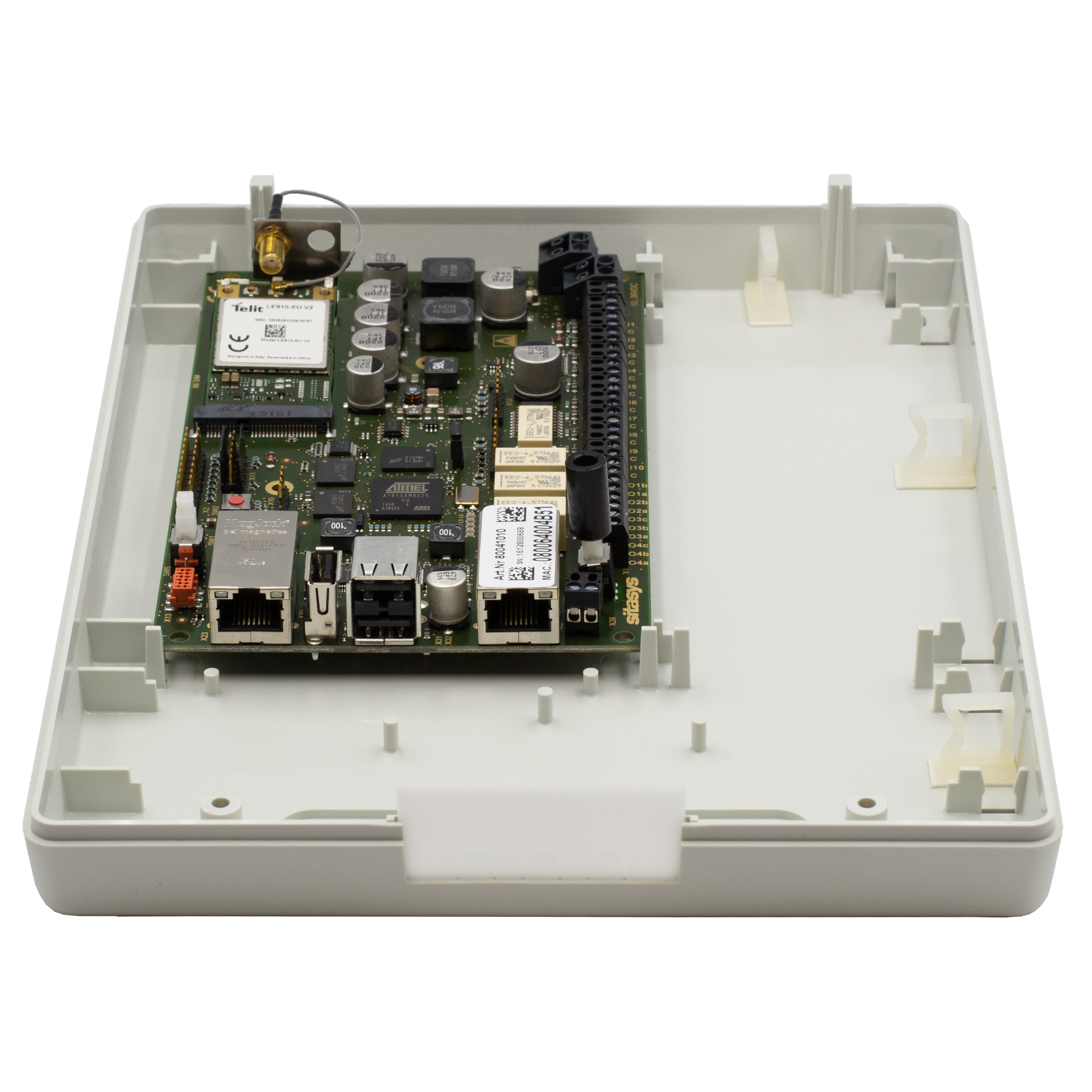

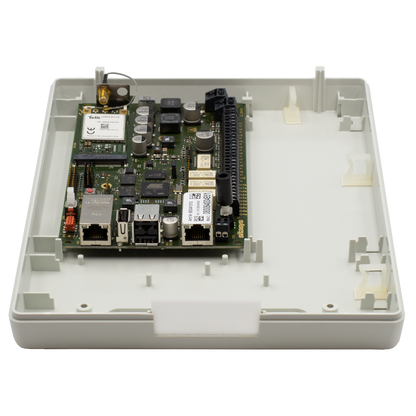

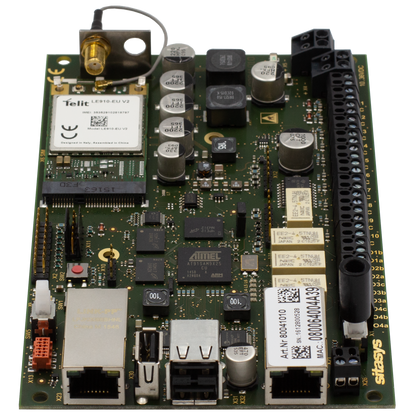

evalink ipTNA4i

evalink ipTNA4i

Regular price Login to see prices
Regular price Login to see prices Sale price Login to see prices
Sale Sold out
Type

In stock – delivered in 7-12 business days

The certified and modular alarm transmission device for high-security applications.

To provide you the best way to connect to the evalink ecosystem, we offer you the ipTNA4i - the EN 54-21 and VdS certified transmission device. All devices are dual-path devices with dynamic encryption and permanent connection monitoring, whose monitoring cycle can be flexibly adapted to your needs.


Together with the evalink platform, the devices offer you a secure and reliable transmission of events from alarm and/or technical systems to your desired targets.

View full details

Details

Certifications

EN54-21:2006
EN50136-2:2013
EN50131-10:2014
VdS 2344:2014-07
VdS 2110:2017-09
VdS 2471-S1:2015-06
VdS 2203:2001-03
VdS 2463:2007-08

Technical specification

Connectivity
3 x USB 2.0
2 x Ethernet
1x 4G Modem (optional)
1x Tamper

Inputs
10 x Inputs
< 15VDC Screw Terminals

Outputs
4 x Outputs (Relays)
60VDC / 42.5VAC / 0.5A
Screw Terminals
Bistable Relays

Power supply
2 x Power Supply Inputs
10 ... 36VDC
120mA @ 12VDC
Screw Terminals

Dimensions
160 x 100 x 29 mm (Eurocard)

Temperature range

0 - 40 °C (non-condensing)

Monthly subscription costs

A monthly subscription is required to use this product.
If this is not already known, please speak to Sales first before ordering.

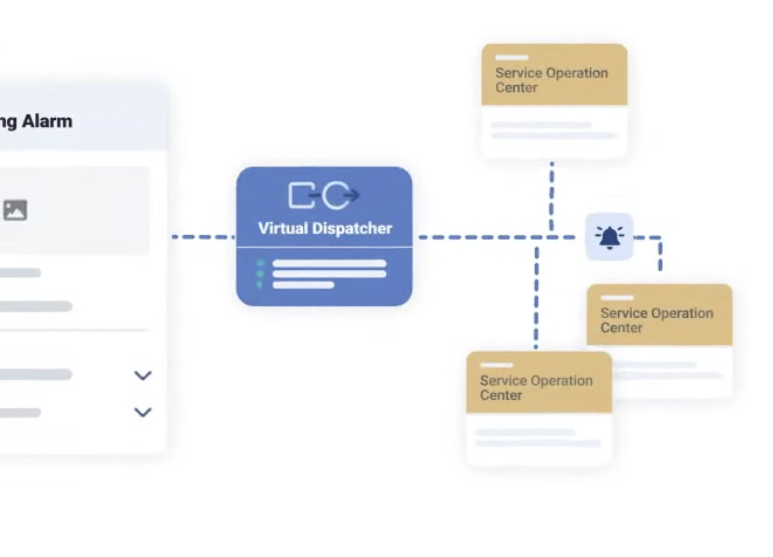

Dispatching to ARC

Your expertise and ecosystem is interesting for others. Scale as a service provider and offer this to other security companies, e.g., private SOCs, police, and fire department.

4G Mobile

4G Mobile can be used as a backup path to the Ethernet connection towards evalink. The connection is monitored 24/7 just like Ethernet.

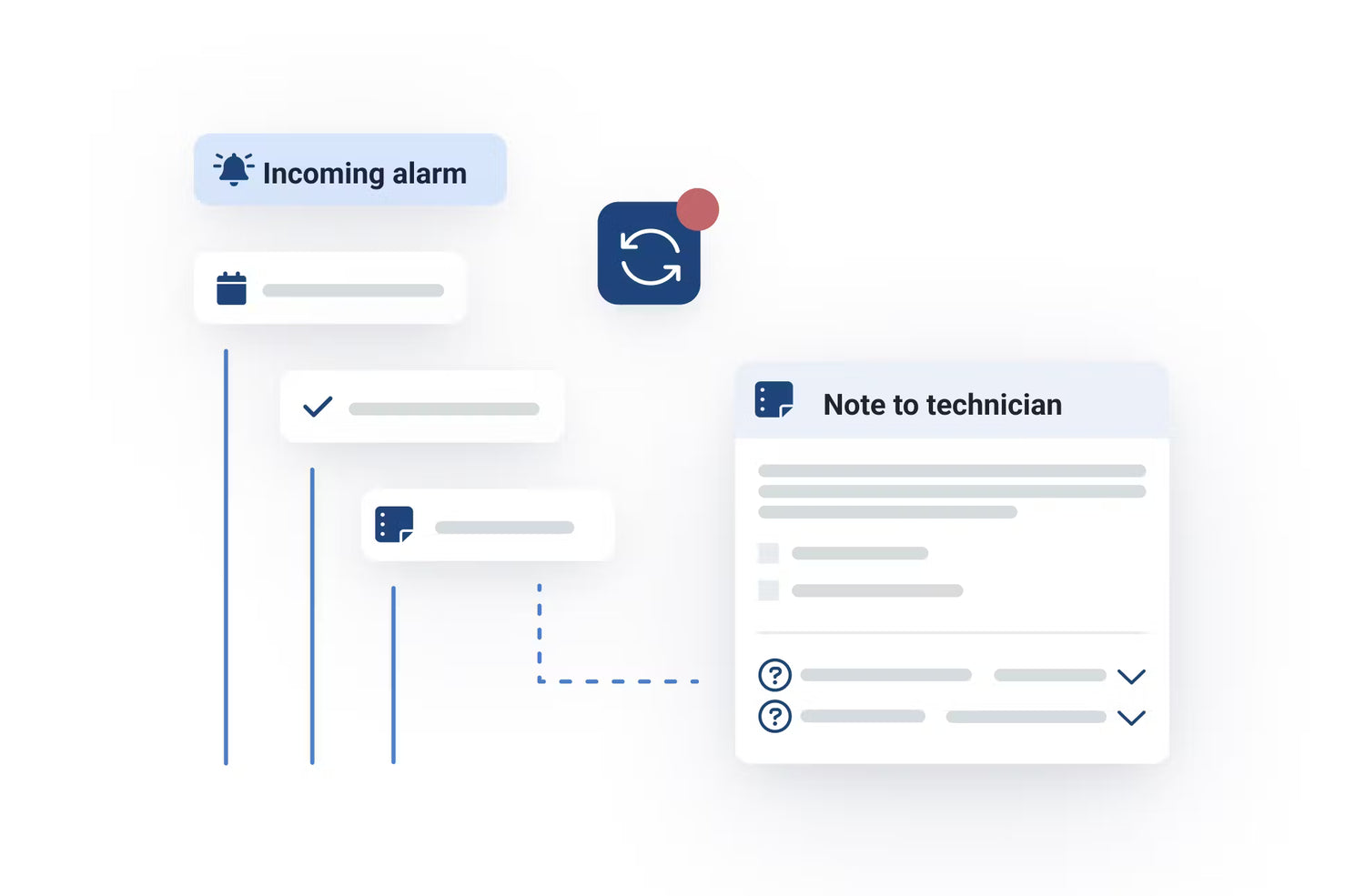

Automation

Process data locally, convert protocols, and automatically escalate critical information to the evalink cloud platform, where you can alert contacts via SMS, email, text-to-speech, etc., or send it to a monitoring station.
